The design of high power outdoor solar lights is not a simple task.
In designing engineered high power solar lights, we must consider the following factors:
- pole height/spacing
- local temperature/sunlight conditions
- LED dimming at night
- customer’s budget
ADNLITE has written an article to explain how to design commercial outdoor solar lights. But reasonably matching solar panel power and battery capacity is still a challenge. Large solar panel power and battery capacity require higher costs. On the contrary, high-power outdoor solar lights’ lighting time and life span can’t meet the customers’ requirements.
So ADNLITE decided to collect some commercial outdoor solar light projects. These are projects that we have done all over the world.
High Power Outdoor Solar Lights in TX, USA
Texas, USA’s temperature and light hours are ideal for installing high-power solar lights. Only 120W solar panels and 12.8V 80ah battery capacity can’t support 80W power LED street lights running at full power all night. So, the solar-powered street light in this project is also connected to the grid. The power stored in the battery will be depleted first. After that, the system will automatically connect to the grid to power the solar led street light. It will compensate for the disadvantage of unstable lighting time with solar power.

Address
TX, USA
Application
Parking lot
Specification
- Pole Height: 8 Meters ( 2.6 feet)
- Led Power: 80W 12000lm
- Solar Panel: 120W mono solar panel
- Battery: 12.8V 80AH
- Dimming way: 100% LED Power in the night
- Hybrid with on Grid
High Power Outdoor Solar Lights in WA, AUSTRALIA
Australia has plenty of light hours and is, therefore, one of the most suitable countries for solar installations. We use the lowest possible LED power to achieve sufficient lumen values. It is brought about by the fact that we used the highest light efficiency LED solution. We paired a solar panel with four times the LED power and a lithium battery with sufficient capacity. In addition, the customer required the solar led street light to work at full power all night.

Address
WA, AUSTRALIA
Application
Country road / Community road
Specification
- Pole Height: 6 Meters ( 2 feet)
- Led Power: 22W 4000lm ( 5050 Led chip)
- Solar Panel: 90W mono solar panel
- Battery: 12.8V 44AH
- Dimming way: 100% LED Power in the night
- 4-5 cloudy days lighting
High Power Outdoor Solar Lights in Spain
The configuration principle is the same as the above Australian solar lights project in WA. Both need high-powered solar lights to work at full power all night. So we configured a large enough solar panel and lithium battery. However, the winter temperature of the project site is around 0 degrees Celsius. It will significantly reduce ordinary lithium batteries’ charging and discharging performance at 0 degrees Celsius. Therefore, the working time of the solar led street light of this project in winter will be much shorter. Click to see how to ensure the operating hours of solar lights in low-temperature conditions.

Address
Spain
Application
Country road / Community road
Specification
- Pole Height: 5 Meters ( 2 feet)
- Led Power: 30W 4500lm ( 3030 Led chip)
- Solar Panel: 120W mono solar panel
- Battery: 12.8V 63AH
- Dimming way: 100% LED Power in the night
- 4-5 cloudy days lighting
High Power Outdoor Solar Lights in Saudi Arabia
Solar lights project at an airport in Saudi Arabia. The project has three different heights of light poles. So we used three different high powered solar lights to ensure the brightness of the road. We increased the configuration of solar panels and batteries. This is because the client needed to ensure the solar led street light for this project for more than five rainy days for all-night lighting. In addition, the client insisted on the integrated design. But the size of the 240W solar panel was too big for the integrated solar led street light design. So we installed the solar panel to the back of the light body. From the perspective of safe installation, we still want to install the solar panel on the top of the pole separately.



Address
Saudi Arabia
Application
Airport Street Lighting
Specification
- Pole Height: 6 / 10 / 12M
- Led Power: 60W / 80W / 110W
- Solar Panel: 120W/ 240W / 240W
- Battery: 12.8V 90AH/130AH/200AH
- Dimming way: 30% Motion Dim
- 7-10 cloudy days lighting
High Power Outdoor Solar Lights in Cebu, Philippines
A solar street light project was installed on an island in Cebu, Philippines, in 2014. 4500 lumens on a 6M pole is bright enough. 90W solar panel is also enough for a 30W LED street light to work at full power all night. But the battery configuration is still too low. It is because the capacity of the battery will continue to decay. About 2 to 3 years later, the battery capacity is insufficient for a 30W LED street light to work all night at full power.

Address
Cebu, Philippines
Application
Country Road
Specification
- Pole Height: 6M
- Led Power: 30W 4500lm
- Solar Panel: 90W
- Battery: 12.8V 30AH
- 100% Whole brightness at the night
High Power Outdoor Solar Lights in OHIO, USA
The US OHIO continent is also suitable for installing outdoor solar street lights. It is because of the better light and temperature conditions. In general, induction dimming is a very economical feature in areas with few people. The LED power can be increased for the same solar panel and battery configuration. Since no pedestrians are around, the LED power will drop 30% to save energy.

Address
OHIO, USA
Application
Rural Road
Specification
- Pole Height: 8M
- Led Power: 45W 8000lm
- Solar Panel: 90W
- Battery: 12.8V 36AH
- 30% Motion Dim
High Power Outdoor Solar Lights in Bangkok, Thailand
This project is similar to the OHIO example above. It is mainly identical regarding solar panel and battery configuration and induction dimming. It is said that the customer chose our solar powered street light solution because of the design of the street light pole. Customers have different preferences for the appearance of solar street lights. It is what we have learned from nearly a decade of experience. Click to see about 30 models of outdoor solar street lights from ADNLITE in 2023.

Address
Bangkok, Thailand
Application
Rural Road
Specification
- Pole Height: 6M
- Led Power: 30W 4400lm
- Solar Panel: 60W
- Battery: 12.8V 22AH
- 30% Motion Dim
High Power Outdoor Solar Lights in Puerto Rico
Yes, the configuration of this solar apple light is very low compared to 30W, 60W solar street light. The installation height of the solar light for this project is very low. The installation location does not require a long lighting time for the solar light. And it needs a more artistic appearance to match the surrounding environment.

Address
Puerto Rico
Application
Community Lighting
Specification
- Pole Height: 3M
- Led Power: 10W 1600lm
- Solar Panel: 30W
- Battery: 3.2V 18AH
- 30% Motion Dim

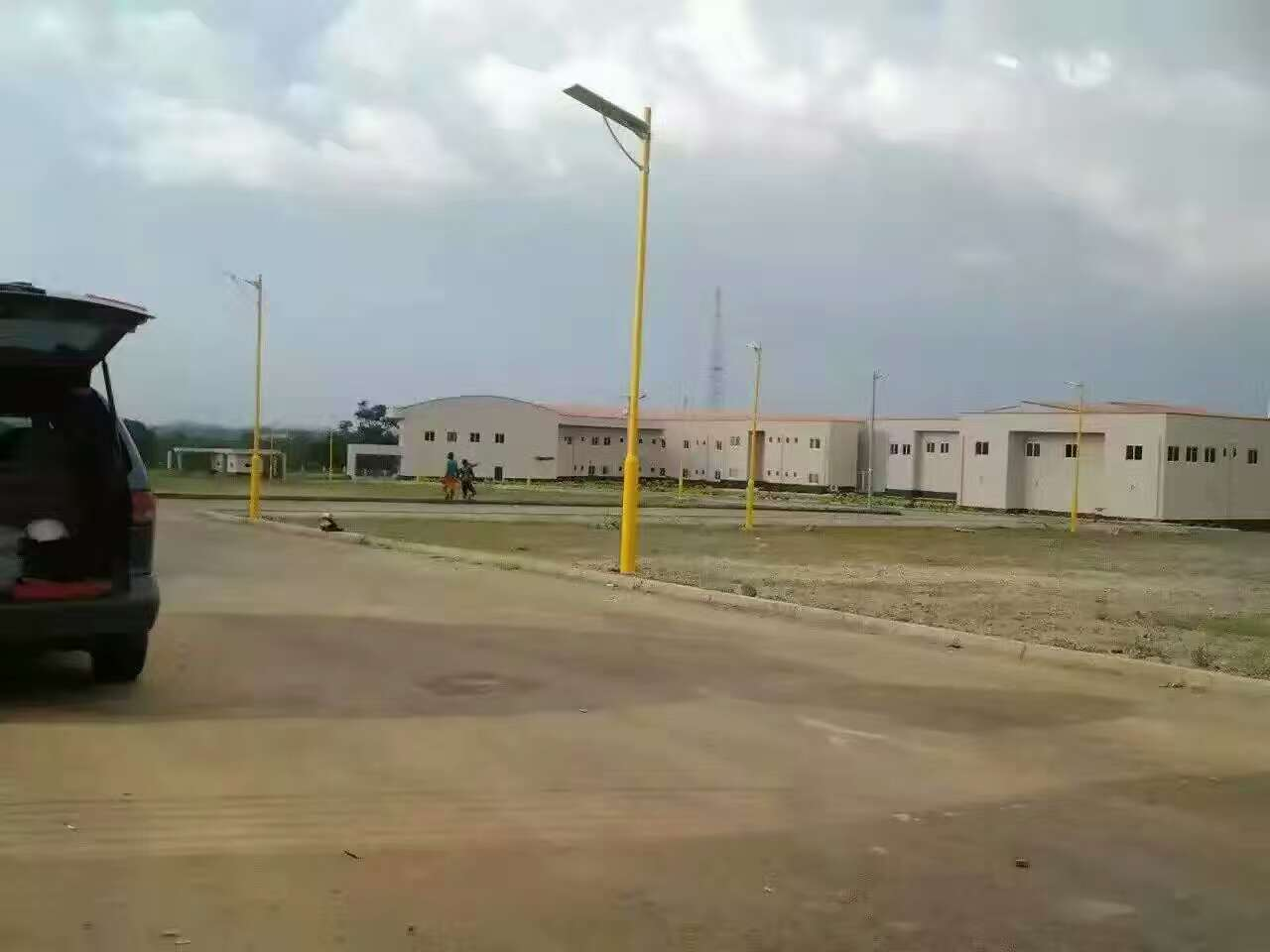

High Power Outdoor Solar Lights in Malaysia
Malaysia’s temperature and light hours are also ideal for commercial solar street lights. The factory roads are free of pedestrians and vehicles almost every night. So we recommend our customers use 30% induction dimming to reduce the solar led street light cost. In fact, for most non-main road public area solar lighting, we recommend induction dimming as a feature.

Address
Malaysia
Application
Road lights in Industrial Park
Specification
- Pole Height: 6M
- Led Power: 50W 9000lm
- Solar Panel: 90W
- Battery: 12.8V 36AH
- 30% Motion Dim
High Power Outdoor Solar Lights in Nigeria
Nigeria is the largest country in the African solar street lighting market. Customers prefer large-size, multi-row LED modules and 3.2V lithium batteries to control costs. The above configuration is commonly used in government projects in Nigeria.

Address
Nigeria
Application
Country road
Specification
- Pole Height: 8M
- Led Power: 40W 7000lm
- Solar Panel: 90W
- Battery: 3.2V 80AH
- 30% Motion Dim
Welcome to contact us. ADNLITE is pleased to provide you with professional, customized solar lighting solutions.
